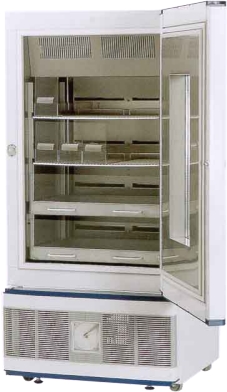

Product Name: Blood Bank Refrigerator
Model No: BR320
Refrigerator for preserving blood
The
preservation of blood is subject to very strict requirements. Blood is perfectly
preserved at a temperature of +4oC (+/- 1.5oC). The new
blood banks from Electrolux offer optimal conditions for preserving blood and
blood products, and conform to blood standards.
This refrigerator enables hospitals, laboratories and universities to preserve
blood bags and blood products in compliance with the relevant standards and in
complete safety.
By virtue of its practical dimensions, the BR 320 refrigerator offers optimal
storage capacity for preserving blood bags. For efficient and ideal storage, it
is standard-equipped with three drawers, two shelf units and 25 racks that are
very easy to handle.
The GOLD safety standard implemented on this unit is as follows:
|
|
The alarm history stores all significant values occurring as of a temperature alarm: average, minimum and maximum values and the duration of the alarm phase. |
|
|
Alarm test: Simulation of a rise or fall in temperature to verify the correct operation of the alarm. |
|
|
Alarm following prolonged opening of the door. This alarm message is also displayed if the door threatening the temperature. |
|
|
Operation is guaranteed with an outside temperature between 10oC and 43oC. |
|
|
Special Insulation with K less than or equal to 0.35W / m2.K |
|
|
Easy cleaning for optimal hygiene thanks to the stainless steel cabinet liner |
|
|
Automatic closing of the door if the opening angle is less than 90o. |
|
|
Self-test and warning in choice of different languages. |
|
|
Safety thermostat (if the temperature drops below 2oC) |
|
|
RS 485 Interface enabling the refrigerator to be connected to a computer. All the control and monitoring functions can consequently be provided using a computer with special software. |
Gross Storage Capacity: 408 litres
Material |
|
|
|
Cabinet Insulation (mm) |
85 bis 95 |
|
|
External Material |
Powder painted steel |
|
|
Internal Material |
Stainless Steel |
|
|
Volumes |
|
|
|
Gross Volume |
408 Ltr. |
|
|
Net Volume |
319 Ltr. |
|
|
Outside Dimensions |
|
|
|
Height x Width x Depth (mm) |
1950 x 850 x 785 |
|
|
Net Weight |
179 kgs. |
|
|
Inner Dimensions |
|
|
|
Height x Width x Depth (mm) |
1085 x 680 x 553 |
|
|
Ship Dimensions with Ocean (wood) packing |
|
|
|
Height x Width x Depth (mm) |
1915 x 900 x 970 |
|
|
Gross Weight |
242 kgs. |
|
|
Temperature Set Range |
|
|
|
Temp Set Point *(amb temp +100 to +430) |
+40C |
|
|
Preset "Warm Alarm" |
+60C |
|
|
Preset "Cold Alarm" |
+20C |
|
|
* The amb. temperature must be always be 5K higher than the Set Point.
